Buy Pipeline & Bedhead Interfaces in Nigeria.

Buy medical gas pipeline copper tube in Nigeria

The medical gas pipeline copper tube category contains two assigned references: Dräger Pipeline Systems for Medical Gases, a project-configured distribution-system product, and Mueller Streamline AC01010 medical gas copper tube, listed as 1/4-inch outside diameter by 10 feet. Use the exact filters to open each catalogue assignment:

- Dräger Pipeline Systems for Medical Gases

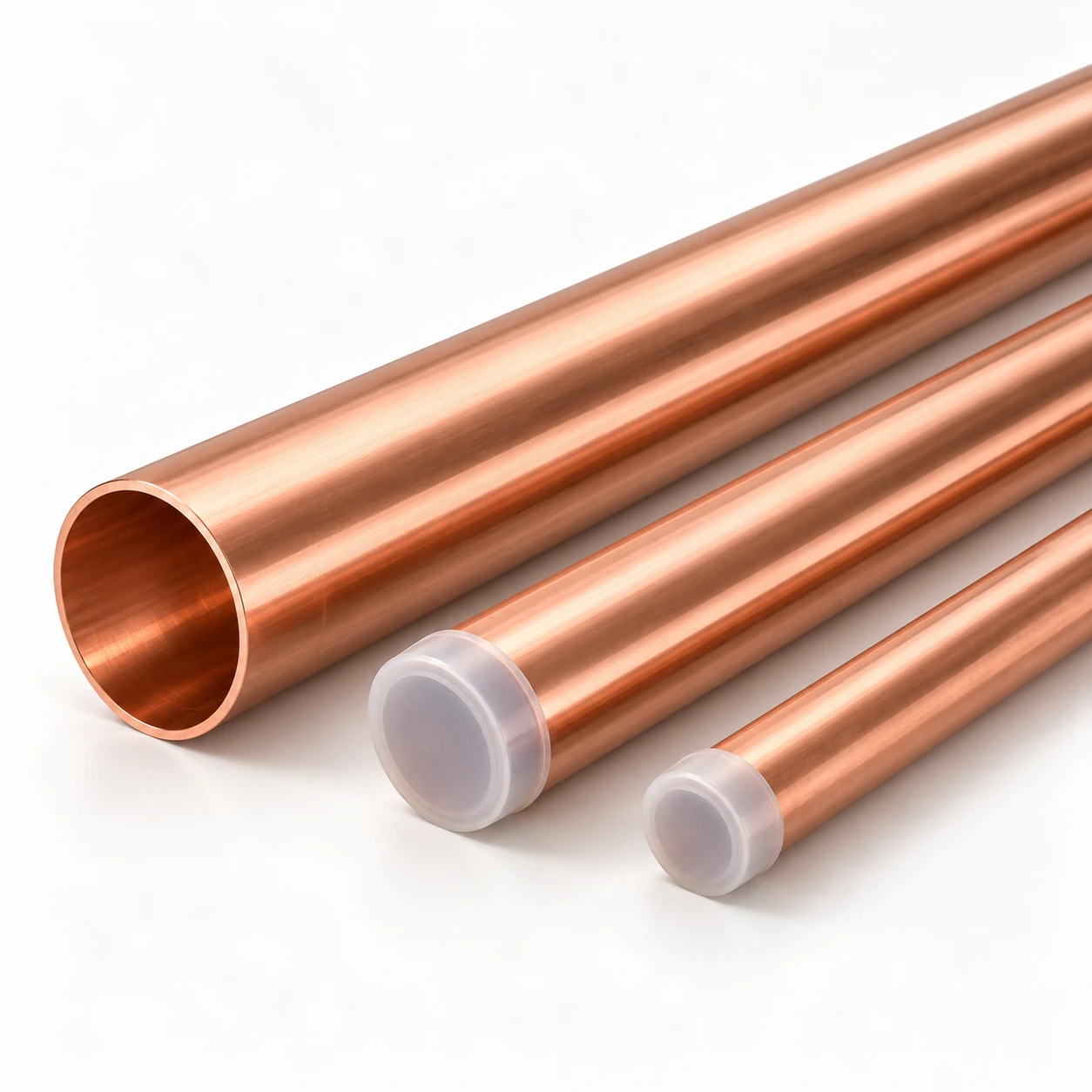

- Mueller Streamline AC01010, 1/4 in OD x 10 ft

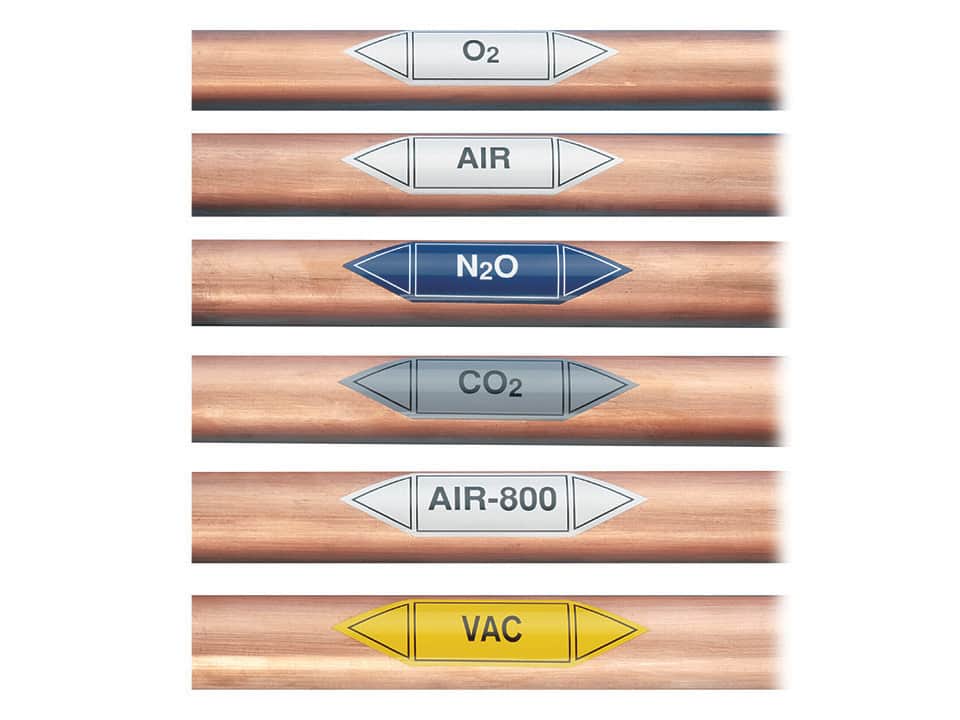

The Dräger manufacturer describes its pipeline distribution system as a professionally designed, installed and maintained system using medical-grade copper pipe, and identifies EN 13348 for its pipe. That product information describes Dräger's system context; it does not mean that a single tube product defines the material, diameter, cleanliness or installation method required for every Nigerian project. The Mueller item in the catalogue is a specific small-diameter tube reference. It must not be assumed to suit a main distribution line, a branch or any design without engineering confirmation.

For the pipework schedule, the project designer should identify each gas and vacuum service, design flow and pressure, source arrangement, pipe material and standard, diameter by segment, route and supports, joints and fittings, installation environment, cleanliness and end protection requirements, labelling, testing and documentation. Ask the supplier to state the tube's exact standard, grade, dimensions, degreasing/cleanliness status, end caps, packaging and traceability. Confirm that those details match the approved design and the required installation and verification procedures. Do not treat generic copper tube as medical gas tube merely because its material is copper.

Buy area valve service units and AVSUs in Nigeria

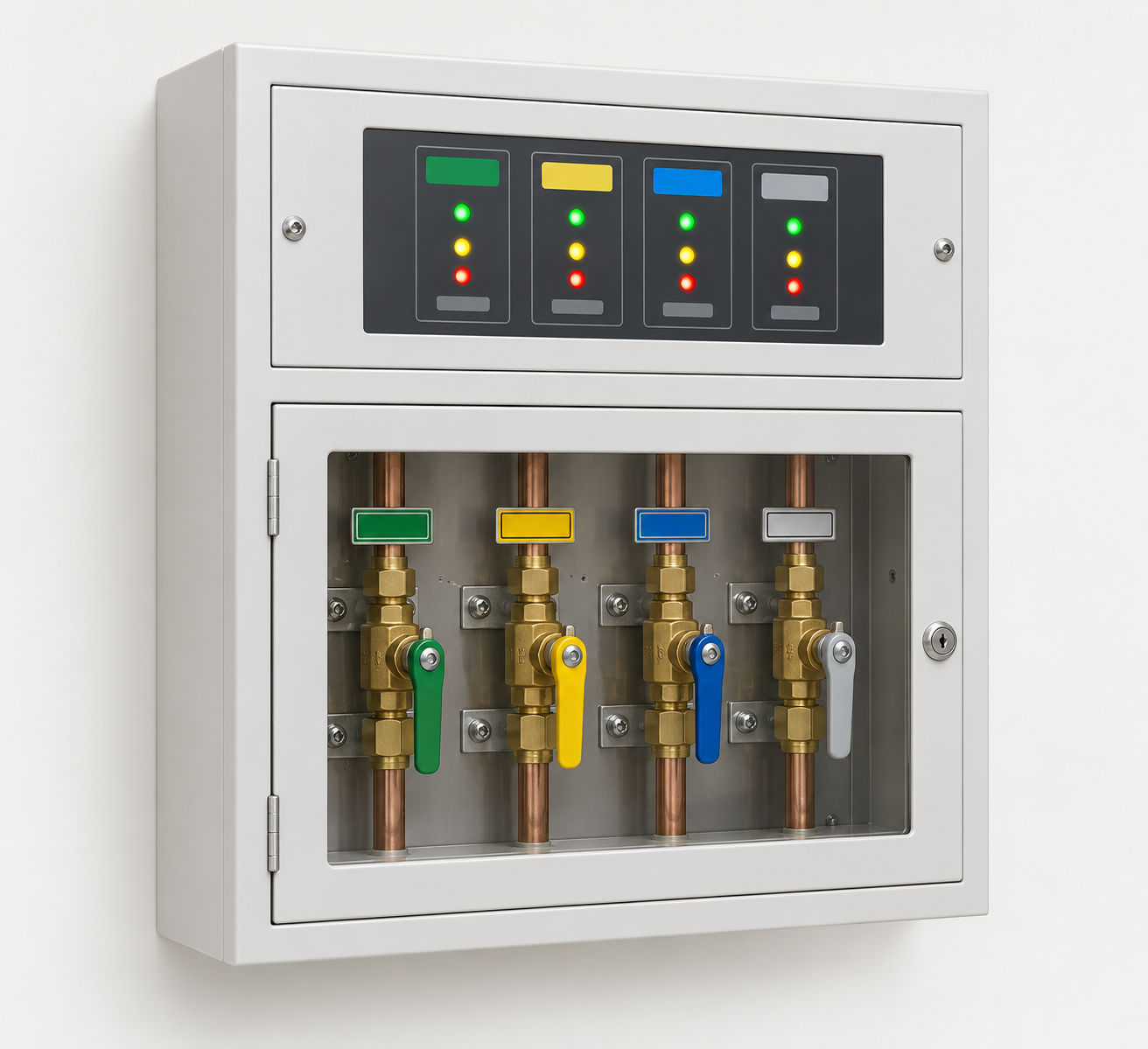

AVSUs, area service units and zone service units isolate a defined service area within a medical gas distribution system. The current AVSU category contains three assignments: BeaconMedaes Medizone MZ272636, BeaconMedaes ZSU2 and Amico Multiple Zone Valve Box. Exact models and project configurations are available through these filters:

- BeaconMedaes Medizone MZ272636 area valve service unit

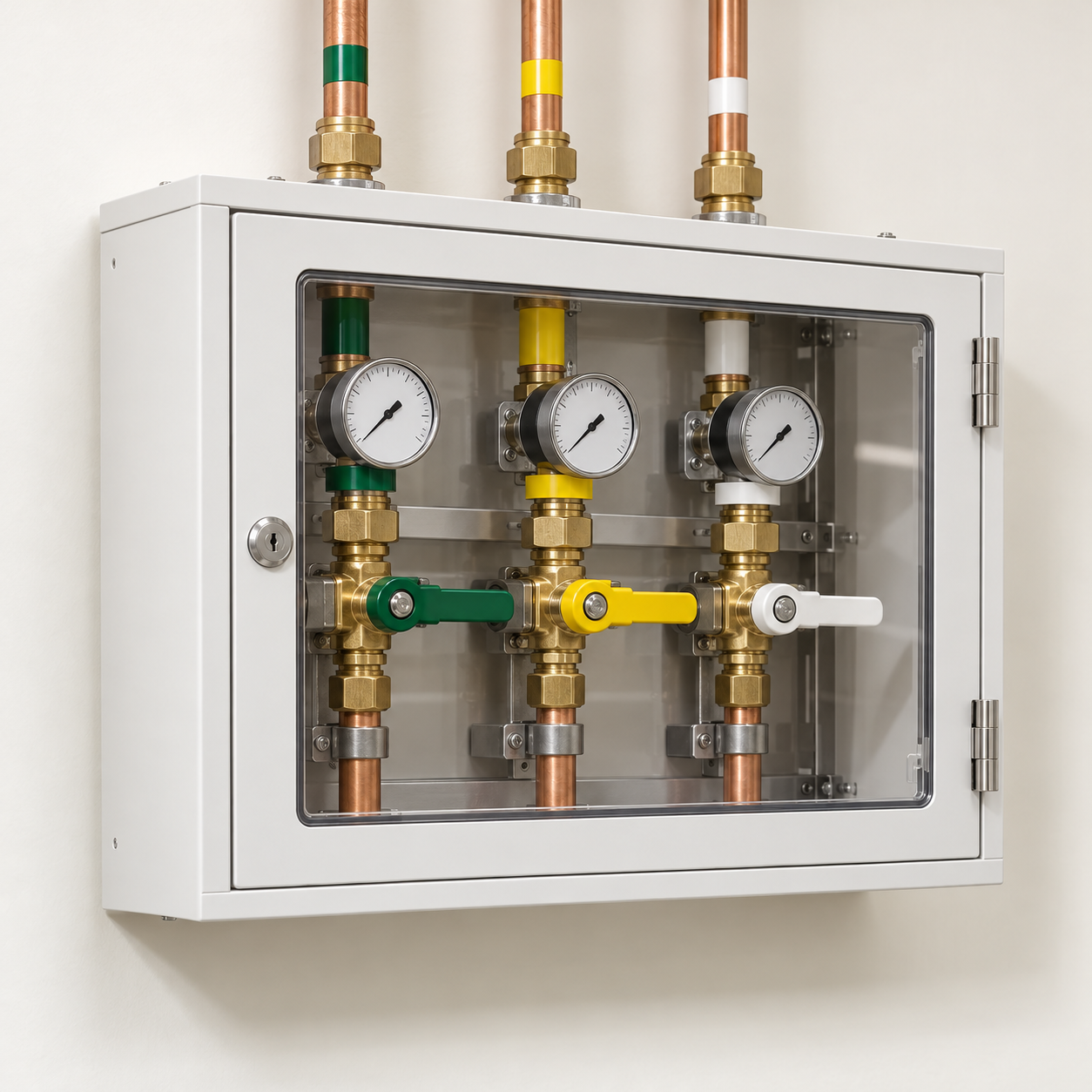

- BeaconMedaes ZSU2 Zone Service Unit

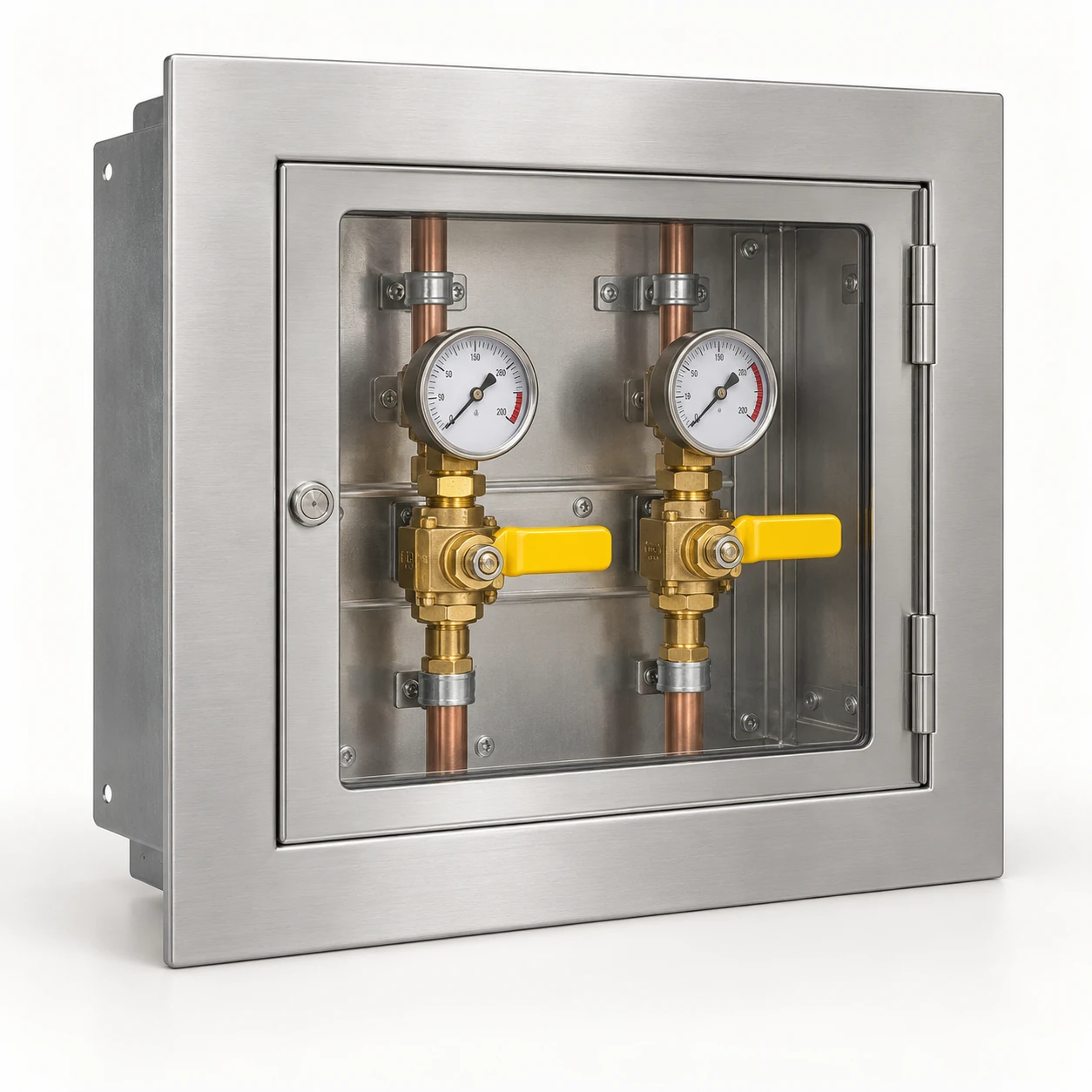

- Amico Multiple Zone Valve Box

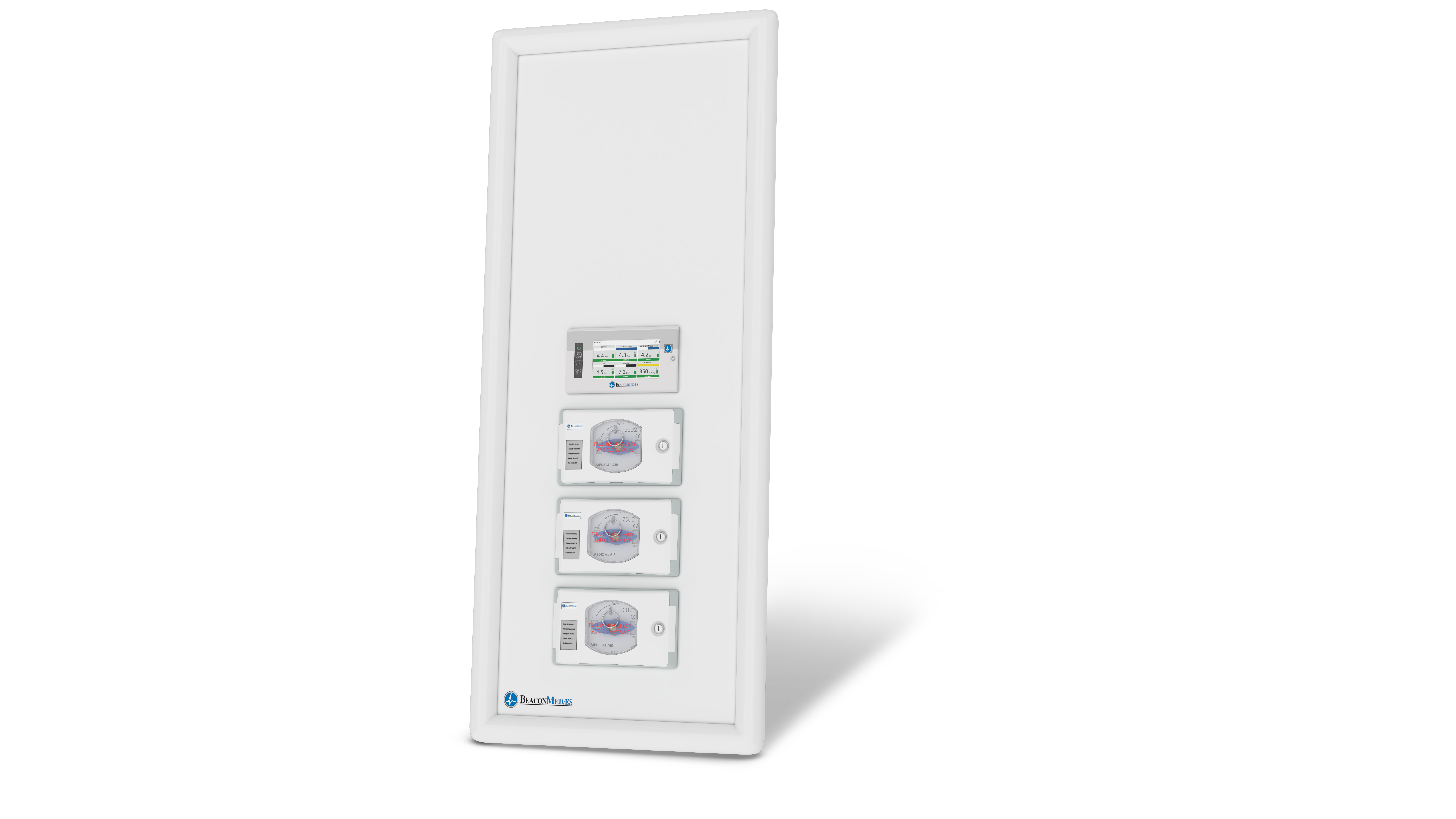

The product records describe the BeaconMedaes Medizone MZ272636 as a three-gas version with an integrated alarm and pressure sensors, while the ZSU2 and Amico box have gas, valve, panel and mounting configurations to be selected. Treat those as the catalogue's assigned scope only; have the manufacturer and project designer confirm the exact available configuration. An AVSU is selected for the gases and zones it serves, its valve and pipe arrangement, pressure monitoring, alarm requirements, access and wall or surface-mount conditions. It must coordinate with the approved zoning plan, alarm schedule, downstream outlets and emergency procedures.

Provide a marked-up floor plan showing the room or clinical zone each valve serves, upstream/downstream boundaries, gas and vacuum services, pipe sizes, mounting height and access needs. The quotation should identify valve count and sizes, services, enclosure and viewing window, pressure sensors or switches, alarm panel or indicators, labels, wiring and any required integration. Ask for the proposed zone schedule and a drawing showing what the unit isolates. The purchasing team should not infer that a zone valve box includes all alarm points, sensors, wiring, pipeline work or commissioning unless the quotation says so.

Buy bedhead units and headwalls in Nigeria

The current bedhead unit category includes three project-configured patient-room products: Dräger Prana Bed-Head Unit, BeaconMedaes Patient Bedhead Unit with DIN-Style GEM Shield Terminals, and Amico Majestic Series Single Tier Recessed Headwall. Open the exact assigned model-filtered listings:

- Dräger Prana Bed-Head Unit

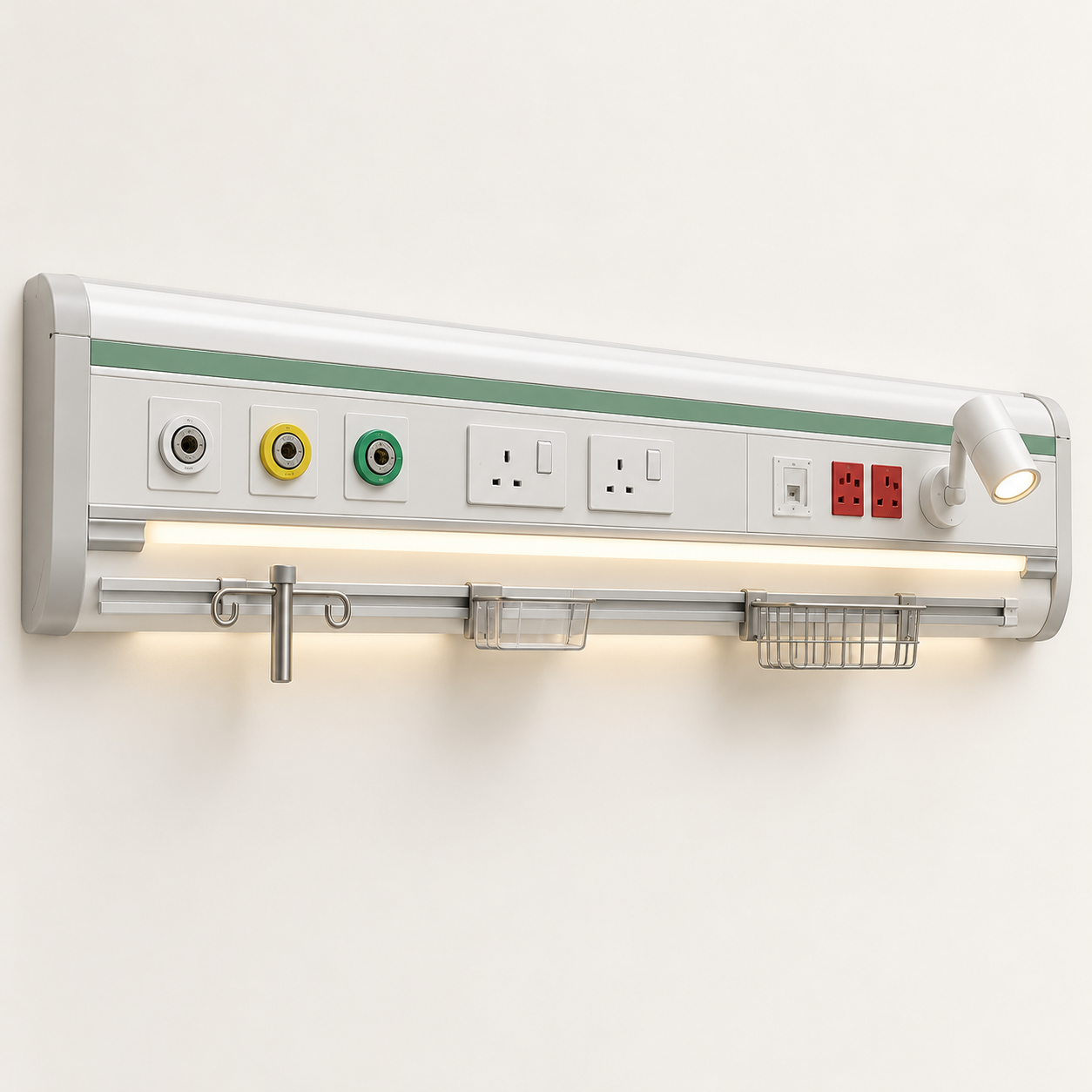

- BeaconMedaes Patient Bedhead Unit with DIN-Style GEM Shield terminals
- Amico Majestic Series Single Tier Recessed Headwall

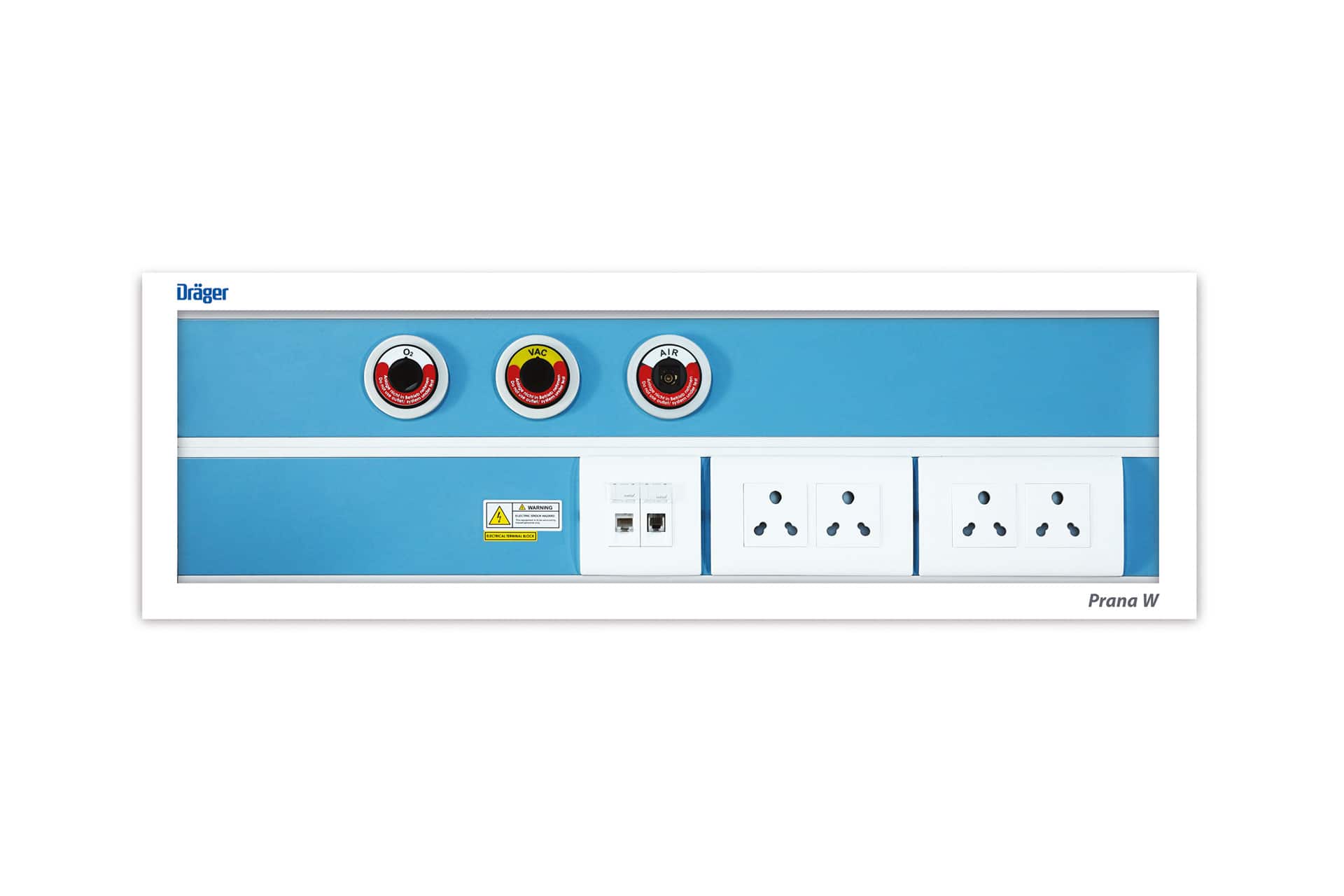

The Dräger Prana record can be configured as a single- or double-duct unit; the BeaconMedaes record describes a project-specific DIN-style terminal example; and Amico describes the Majestic product as a recessed headwall mounted flush with the wall. These descriptions do not establish exact dimensions, equipment inclusions or suitability for a room that has not been surveyed. Confirm the current product drawings and available configuration with the manufacturer for the intended market.

Send room elevations, wall construction, bed count and location, clearances, preferred unit length, medical gas and vacuum outlet schedule, electrical sockets and circuits, data/nurse-call points, lighting, rails and accessories, finish, mounting and service access requirements. Identify which party supplies the headwall, connects pipeline and electrical/data services, finishes the wall, commissions the outlets and provides acceptance records. For retrofit work, include photographs and measured site conditions, not just a product-family name. Request a coordinated drawing that shows outlet identity, spacing and mounting orientation before the fabrication or installation phase.

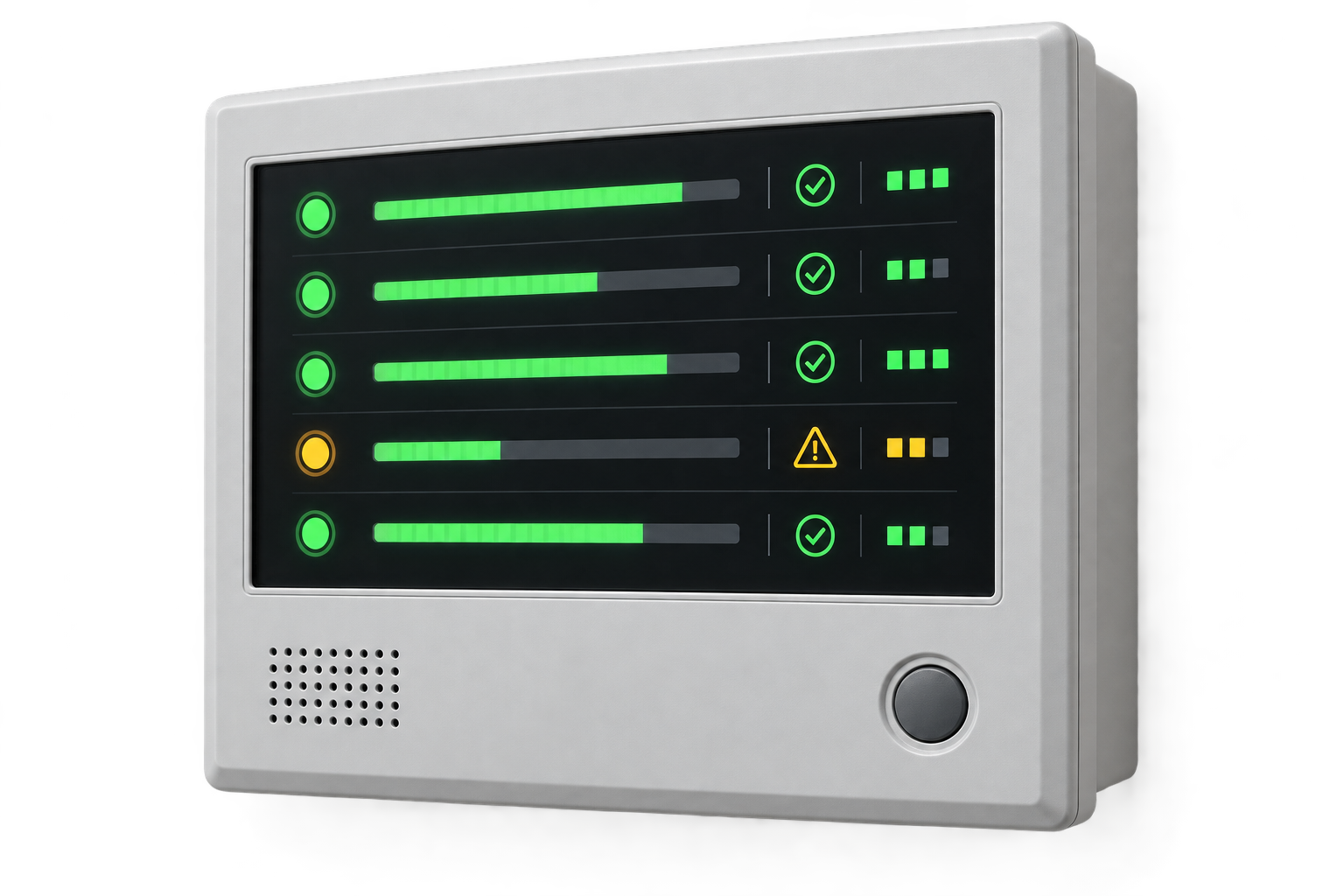

Buy medical gas alarm systems in Nigeria

The medical gas alarm system category contains three assigned products: Dräger Alarm Management System, BeaconMedaes Medipoint 125D Central Medical Gas Alarm (MP125D), and Amico Alert 4 LCD Ethernet Master Alarm. Use these exact product filters:

- Dräger Alarm Management System

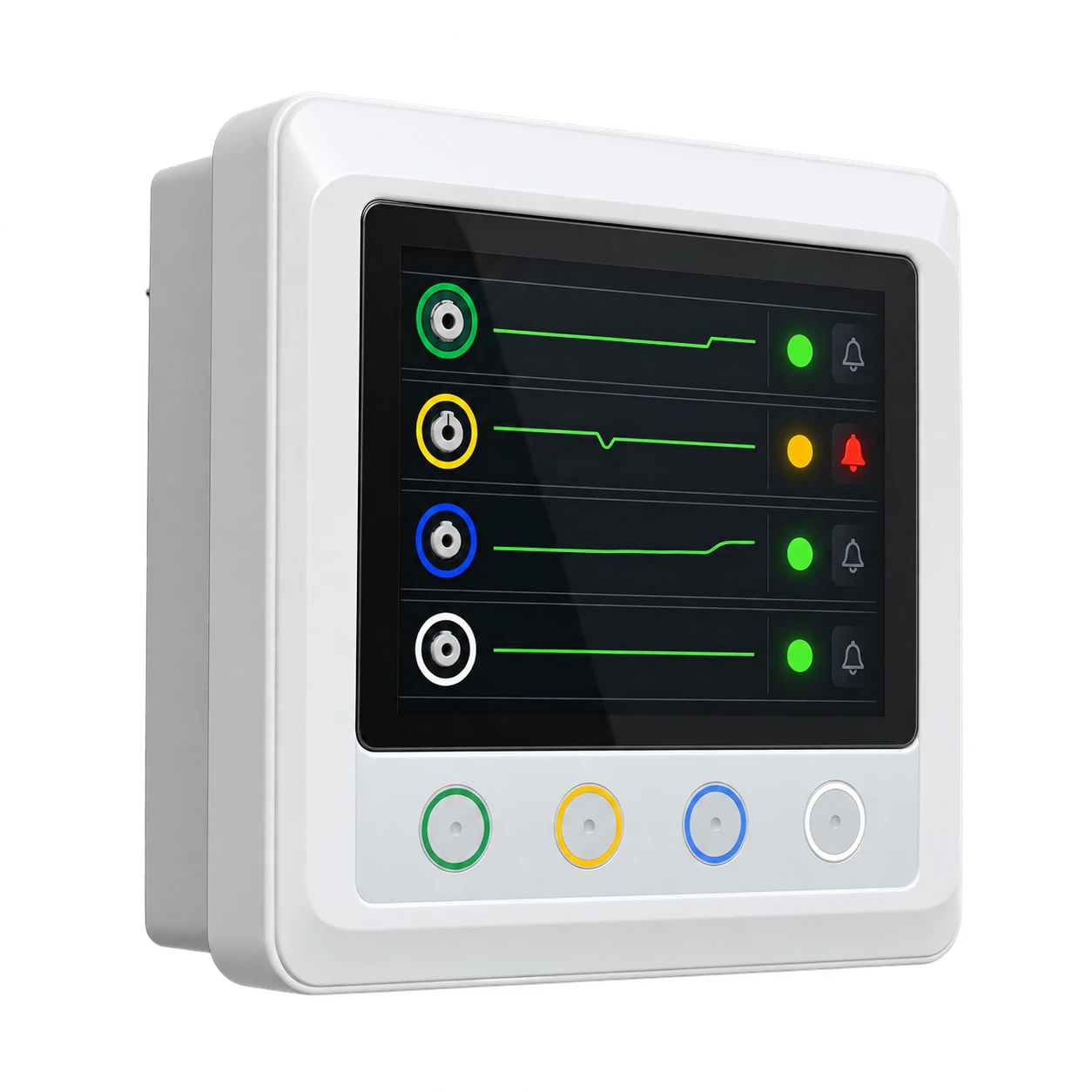

- BeaconMedaes Medipoint 125D / MP125D
- Amico Alert 4 LCD Ethernet Master Alarm

Alarm equipment must be selected from an approved alarm schedule, not simply by display size or network capability. The schedule should state which plant and pipeline conditions are monitored, sensor or switch types, normal and alarm ranges, alarm priorities, locations of master and area panels, audible and visual indication, signal routing, power supply and backup, and any remote or building-management connection. Amico's product information describes Alert 4 LCD Ethernet Master Alarm as a master alarm with up to 30 channels and Ethernet viewing; whether that capability fits a project depends on the designed signals, network architecture, cybersecurity and approved alarm philosophy. Confirm panel count, channel capacity and interfaces for the exact offered model.

Ask for a cause-and-effect or alarm matrix showing each source signal, display, location and responsible responder. Confirm whether sensors, wiring, network connection, alarm panel, commissioning, testing and staff familiarization are included. A network or BMS connection should be specified and reviewed by the facility's technical team; do not assume an alarm page or display link replaces a local alarm function or clinical/engineering response procedure.

Buy BS or Schrader medical gas outlets in Nigeria

The medical gas outlet category currently assigns three British Standard configured outlet records: BeaconMedaes Zeus SP BS 5682, BeaconMedaes GEM Shield BS, and Amico British Standard Medical Gas Outlet. Open their filtered listings:

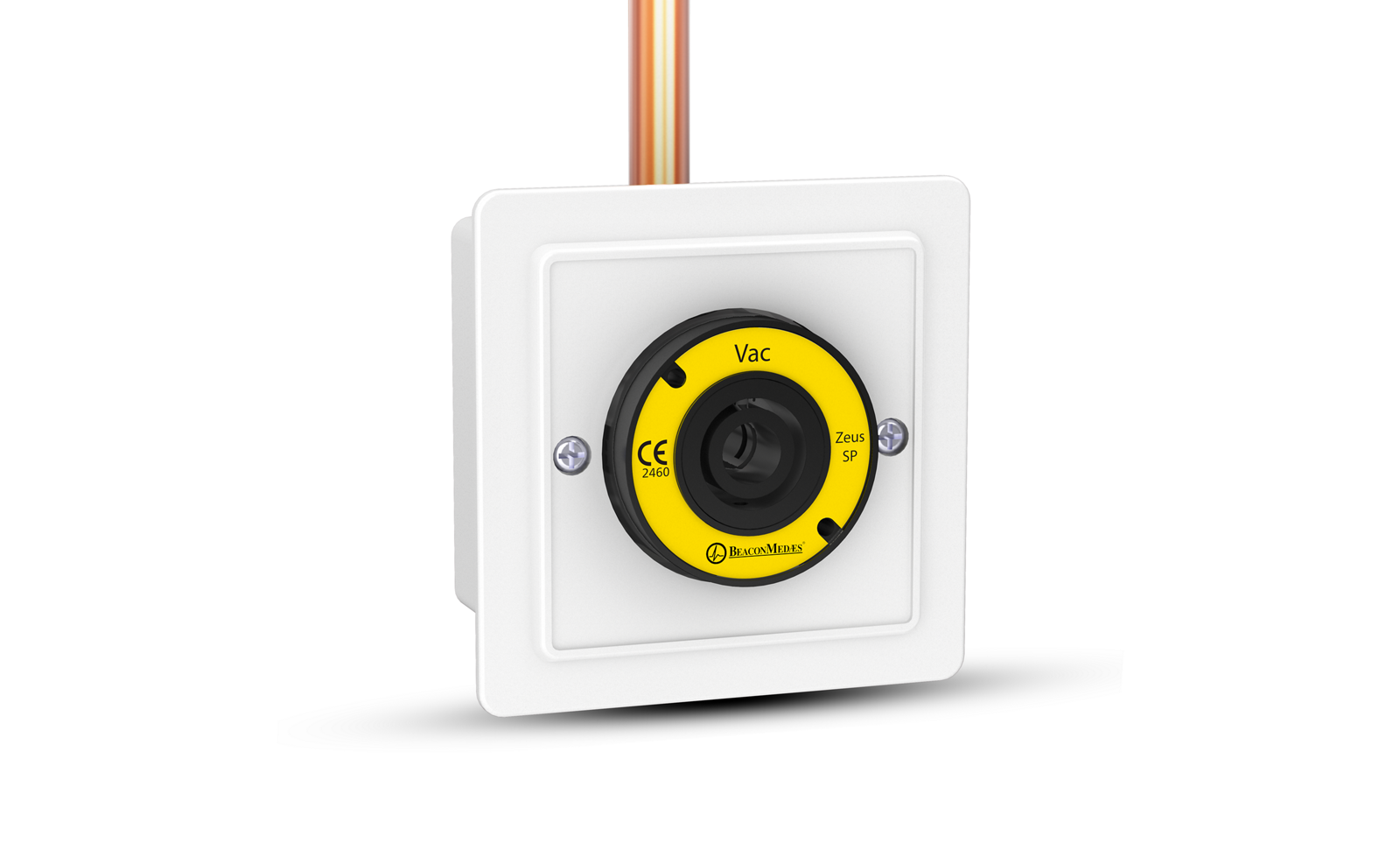

- BeaconMedaes Zeus SP BS 5682 terminal unit

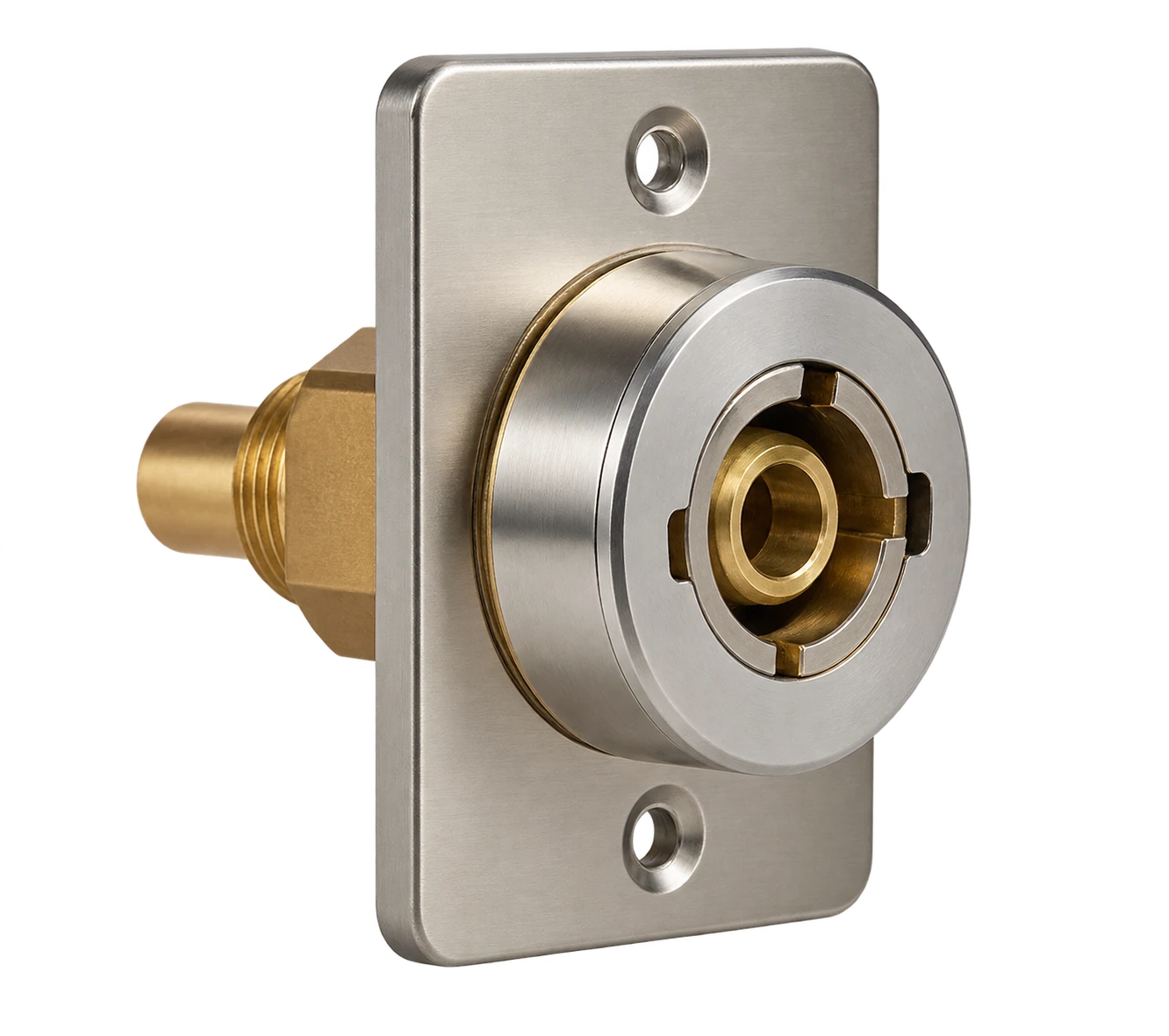

- BeaconMedaes GEM Shield BS outlet
- Amico British Standard medical gas outlet

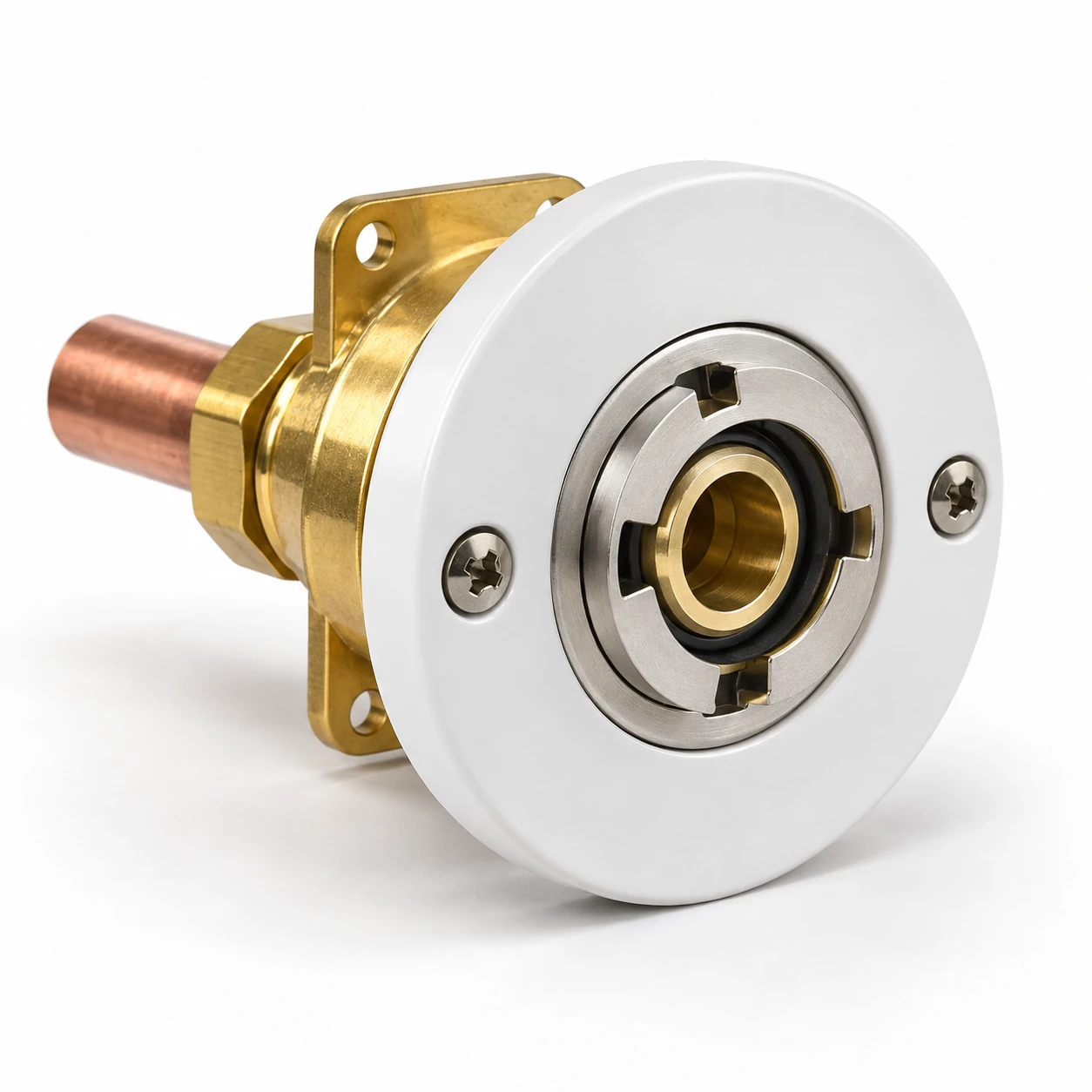

Terminal units are gas-specific connection points; their gas identity and probe standard must match the connected service and the approved system. NHS HTM 02-01 states that user-accessible connection points must be gas-specific and that installation tests verify there are no cross-connections. Amico describes its British Standard outlet with configurable arrangements and a gas-identifying fascia label. Confirm the actual gas, probe and terminal-unit specification, first- and second-fix configuration, mounting style, pipeline connection and required test/verification records for the project.

The label “BS/Schrader” in a category name is not permission to mix connection standards, outlets or probes. State the governing system standard and the exact probe/terminal-unit interface for each gas. Do not adapt an outlet to accept an incompatible probe. Ask the design authority to approve a complete schedule across existing and new outlets, including compatibility with equipment and accessories already used at the facility.

What should a medical gas site survey cover?

Plan a survey before requesting a detailed project quote. Document the facility's existing or proposed source plant and reserve arrangements, distribution route, clinical departments and bed spaces, gases and vacuum services, demand assumptions, future capacity, zone boundaries, alarm locations, terminal-unit positions, bedhead requirements and maintenance access. For existing facilities, capture nameplates, drawings and actual pipe/valve/outlet arrangements where accessible, and identify which information still needs verification. Record room dimensions, wall and ceiling construction, structural supports, service risers, penetrations, fire-stopping, electrical and network interfaces, plant-room access, shutdown windows and working constraints.

The design team should prepare the gas schedule, zone schematic, outlet schedule, equipment and interface schedule, alarm matrix, pipe-sizing basis and installation/validation plan. Identify the applicable Nigerian rules and standards, client specifications, acceptance tests and responsible technical authorities. Standards such as ISO 7396-1 and guidance such as NHS HTM 02-01 are useful references, but the project must decide which requirements actually apply and resolve differences before ordering. Do not copy a reference standard's UK or North American interface into a Nigerian design without project approval.

For procurement, distinguish supply-only from design, installation, verification, commissioning, training and maintenance. Ask the contractor or supplier to state professional responsibility, competent personnel, inspection points, material traceability, cleaning and end-protection expectations, test equipment, test records, handover documents, warranty boundaries and ongoing maintenance scope. Franance can help clarify product and quote requirements, but the project documentation should define who owns the engineered system and its final acceptance.

How do I request a Nigerian quote for pipeline and bedhead equipment?

Provide the facility name and full destination, city and state; project type and phase; marked-up drawings, elevations and room schedule; gases and vacuum services; standard/code basis; current and future zones; outlet and alarm schedules; bedhead configuration; pipe material/dimension requirements; quantities; installation access and shutdown windows; and required documents. For equipment being added to an existing system, include the system's present standards, connection types, source and distribution details, alarm arrangement and site survey findings.

Ask for a line-by-line offer naming each manufacturer reference, configuration, quantity, included components, accessories, compatible interfaces and any alternatives. The commercial offer should show price and currency, applicable tax and import/shipping charges, quote validity, expected delivery, warranty, spares, local service, payment terms and exclusions. The project scope should state whether it includes a site survey, design, drawings, installation, testing, validation/verification, commissioning, training, handover records, scheduled maintenance and support in the stated Nigerian location.

Use the parent Pipeline & Bedhead Interfaces category to start a quote schedule, and include links to the exact leaf and model-filtered listings. Franance will follow up by phone or email to clarify the request. The current catalogue entries do not establish local stock, a final project design, regulatory compliance, installation availability, certification, price, delivery date or warranty; confirm these in the written proposal and project approvals before ordering.

Sources and limitations

Manufacturer sources reviewed include Dräger Pipeline Systems for Medical Gases, Dräger Alarm Management System, Dräger Prana, BeaconMedaes Medizone AVSU module, BeaconMedaes ZSU2, BeaconMedaes medical gas terminal unit Zeus SP, BeaconMedaes Medipoint alarm, Amico Alert 4 LCD Ethernet Master Alarm, Amico British Standard Outlet, Amico Majestic recessed headwall, and Mueller Streamline AC01010 medical gas tube.

The NHS England HTM 02-01 publication describes design, installation, validation, verification and operational management for medical gas pipeline systems in its scope. It is cited as technical guidance, not as Nigerian law. The current Franance parent inventory assigns 14 products across five leaf groups; it does not establish whether a product is stocked, approved for a specific Nigerian project or sufficient for a complete system. Confirm exact references and interfaces with manufacturers, the design authority and local project stakeholders.
