Buy GPC Medical Hydraulic C-Arm Operation Table GHF155.01 in Nigeria

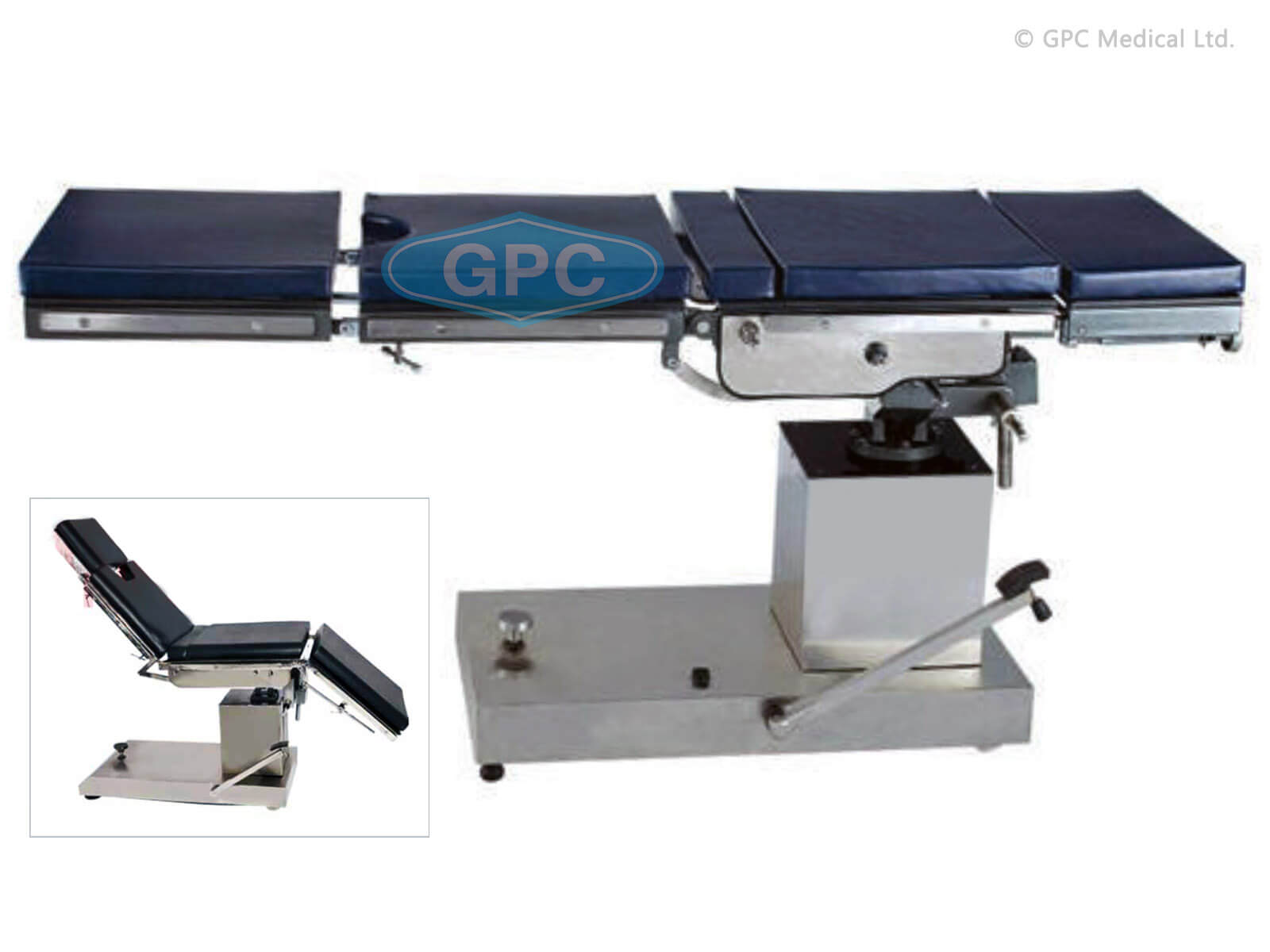

The GPC Medical GHF155.01 page describes a hydraulic, five-section table with a radio-translucent top and full-length C-arm compatibility. It belongs to the GPC Medical range and the hydraulic operating table category.
What size and movement ranges does the GHF155.01 list?
The table top is listed at 1930 mm long and 530 mm wide, with height adjustment from 730 to 980 mm. Lateral tilt is 20 degrees each side, Trendelenburg and reverse Trendelenburg are 25 degrees, the back section reaches 60 degrees and the head section moves 90 degrees up and down. Compare the top size with the C-arm and theatre space you plan to use.
How are the positions controlled?
Unlike electric tables in the same range, the GHF155.01 is operated through cranks fitted under the head end. There is no remote or handheld unit on the page, which matters if your team expects powered adjustment. The page lists raising and lowering, tilt, flex/reflex and a chair position as available positions.
What construction details are documented?
GPC Medical says the table is constructed of 304 stainless steel and has eccentric pillars, a built-in kidney bridge and manually interchangeable head and leg sections. Floor locking is manual. The page does not give a weight capacity or overall weight, so request both from the supplier if floor loading or lifting arrangements matter at your site.
Which accessories and options are mentioned?
Standard items are a pair of side supports with pads, a pair of shoulder supports with pads, a pair of knee crutches with assembly, a pair of padded armrests, an anaesthesia screen rod and a waterproof rubber mattress. An orthopaedic attachment is listed as an option, with no further description, so ask for its specification and price as a separate line.
How do I request a quote for the GHF155.01?
Open the Franance quote form and enter GHF155.01, the quantity, whether you want the orthopaedic attachment, and your Nigerian delivery destination. Franance will follow up by phone or email with a written quotation stating the offered package, availability and delivery terms. There is no online payment step.
Common questions
What size and movement ranges does the GHF155.01 list?
The top is 1930 mm long and 530 mm wide, with height adjustment of 730–980 mm, 20 degrees of lateral tilt each side, 25 degrees of Trendelenburg and reverse Trendelenburg, a 60 degree back section and a head section moving 90 degrees up and down.
How are the positions controlled?
All positions are operated by cranks fitted under the head end of the table. The page shows no remote or handheld control, so confirm this manual-hydraulic arrangement suits your team.
What construction details are documented?
The page states 304 stainless steel construction, eccentric pillars, a built-in kidney bridge, manual floor locking and interchangeable head and leg sections. Weight capacity and overall weight are not listed.
Which accessories and options are mentioned?
Standard items are side supports, shoulder supports, knee crutches, padded armrests, an anaesthesia screen rod and a waterproof rubber mattress. An orthopaedic attachment is an undescribed option to request separately.
How do I request a quote for the GHF155.01?
Use the Franance quote form with GHF155.01, quantity, any orthopaedic attachment request and your Nigerian destination. Franance follows up by phone or email with a written quotation; no payment is taken online.
Request your GPC Medical Hydraulic C-Arm Operation Table GHF155.01 quotation from Franance.
Send Franance the model GHF155.01, quantity, optional attachment needs and Nigerian destination, and request a written quotation with phone or email follow-up.
