Buy Tuttnauer medical sterilization equipment
in Nigeria.

Where can I buy Tuttnauer autoclaves in Nigeria?

Request a Tuttnauer autoclave quotation from Franance using the model-specific listings above. The current selection spans vertical laboratory sterilizers, a larger horizontal laboratory sterilizer and tabletop T-Edge autoclaves. Each has a different chamber form and likely use context. The page represents the Tuttnauer models currently listed by Franance, not the manufacturer's entire range or a promise of stock in Nigeria.

Franance takes quote orders; there is no online payment on these listings. Include the exact model, quantity, expected load, required cycles, utilities, installation destination and procurement timeline. For a laboratory installation, send the chamber and load schedule, available electrical supply, steam or water provisions and room plan. For a T-Edge enquiry, specify model 10 or 11, the device and load types, accessories and record needs. For a larger 5596 project, include the sterilization department plan, door and transfer arrangement and project services. Franance will contact you by phone or email to discuss the requirements and prepare a quotation for the agreed scope.

Which Tuttnauer sterilizer categories are listed in Nigeria?

The vertical laboratory listings include the 3870ELV-D and 5075ELV-D. The horizontal 5596 is listed as a floor autoclave and horizontal steam autoclave. T-Edge 10 and 11 are tabletop, pre- and post-vacuum autoclaves. These categories reflect chamber and equipment families, not a blanket statement that every model is suitable for every instrument or sterilization process.

Start with intended loads and the governing processing requirements. Identify whether the facility handles laboratory glassware, liquids, waste, wrapped instruments, unwrapped instruments or dental handpieces. Confirm load dimensions, batch volume, cycle type, drying and cooling expectations, documentation, users and daily workload. Then compare chamber geometry and the installation footprint. For liquid or biohazard loads, ask for the exact model's programs, options and instructions; do not transfer a cycle claim from one model to another.

Use the filtered Tuttnauer links in this guide to browse each brand/category combination. If the model your team specifies is not among the listed products, send Franance its exact reference for a separate quote enquiry. A broader manufacturer product family should not be mistaken for an item already present in the Franance catalogue.

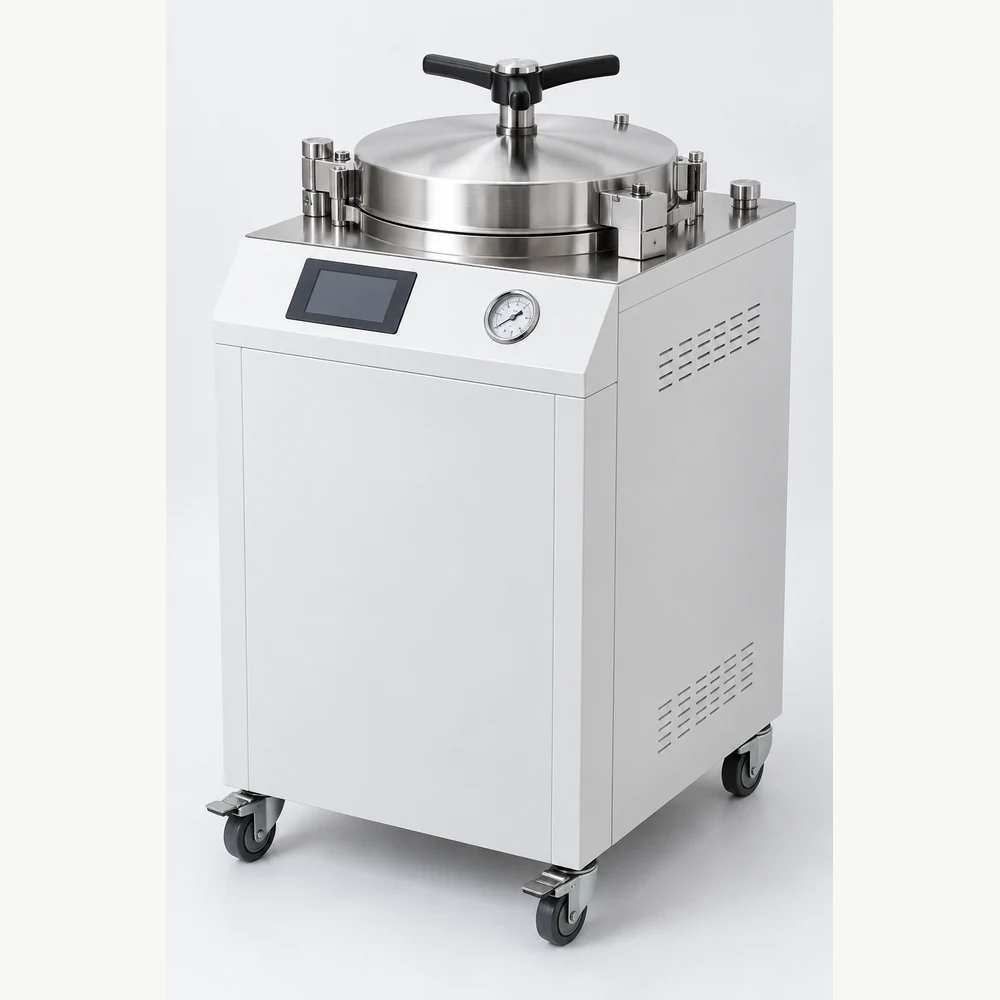

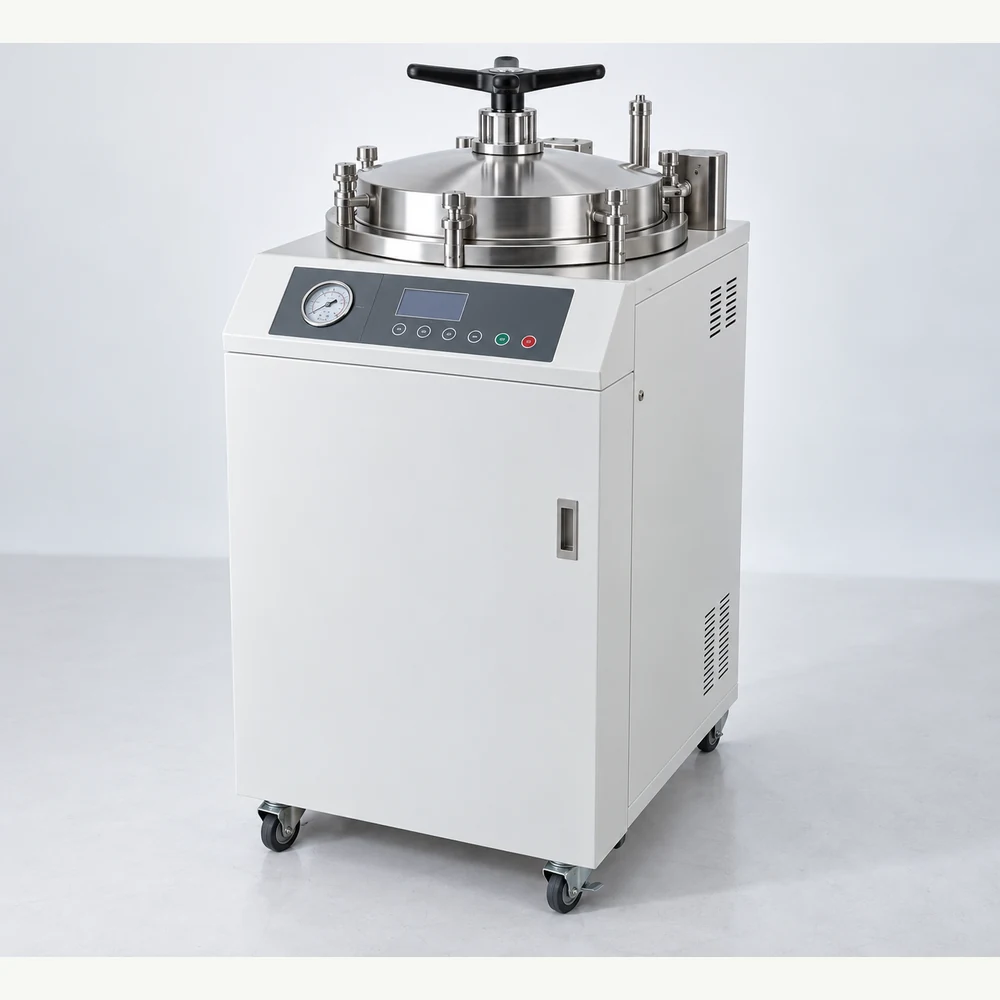

Should I choose a Tuttnauer 3870ELV-D or 5075ELV-D vertical autoclave?

Both models are top-loading vertical laboratory autoclaves, but the chamber size and configuration differ. Tuttnauer describes the 3870ELV-D as an 85-litre model and the 5075ELV-D as a 160-litre model. The product family supports different load and cycle options; the exact supplied accessories and programs must be verified for the model and quotation. Select a capacity only after comparing it with the real dimensions and quantity of the vessels, baskets and loads your laboratory intends to process.

The manufacturer describes pre-vacuum and liquid-related programs for the 3870ELV-D, with available features depending on configuration. The 5075ELV-D material describes factory-set programs alongside configurable cycles and optional features such as cooling, drying, biohazard filtration and F0 control. Those options should not be assumed included. Provide load types, container height and diameter, batch volume, cycle requirements, expected daily cycles and any quality-record requirements.

Vertical top-loading units need a practical loading plan. Confirm overhead clearance, safe lifting and basket handling, operator access, delivery route, floor loading and space for the lid and accessories. Check the exact voltage, phase, steam generation, water and drainage requirements for the selected unit. Have the laboratory and facilities team compare the proposed model and installation to current Tuttnauer documentation before order approval.

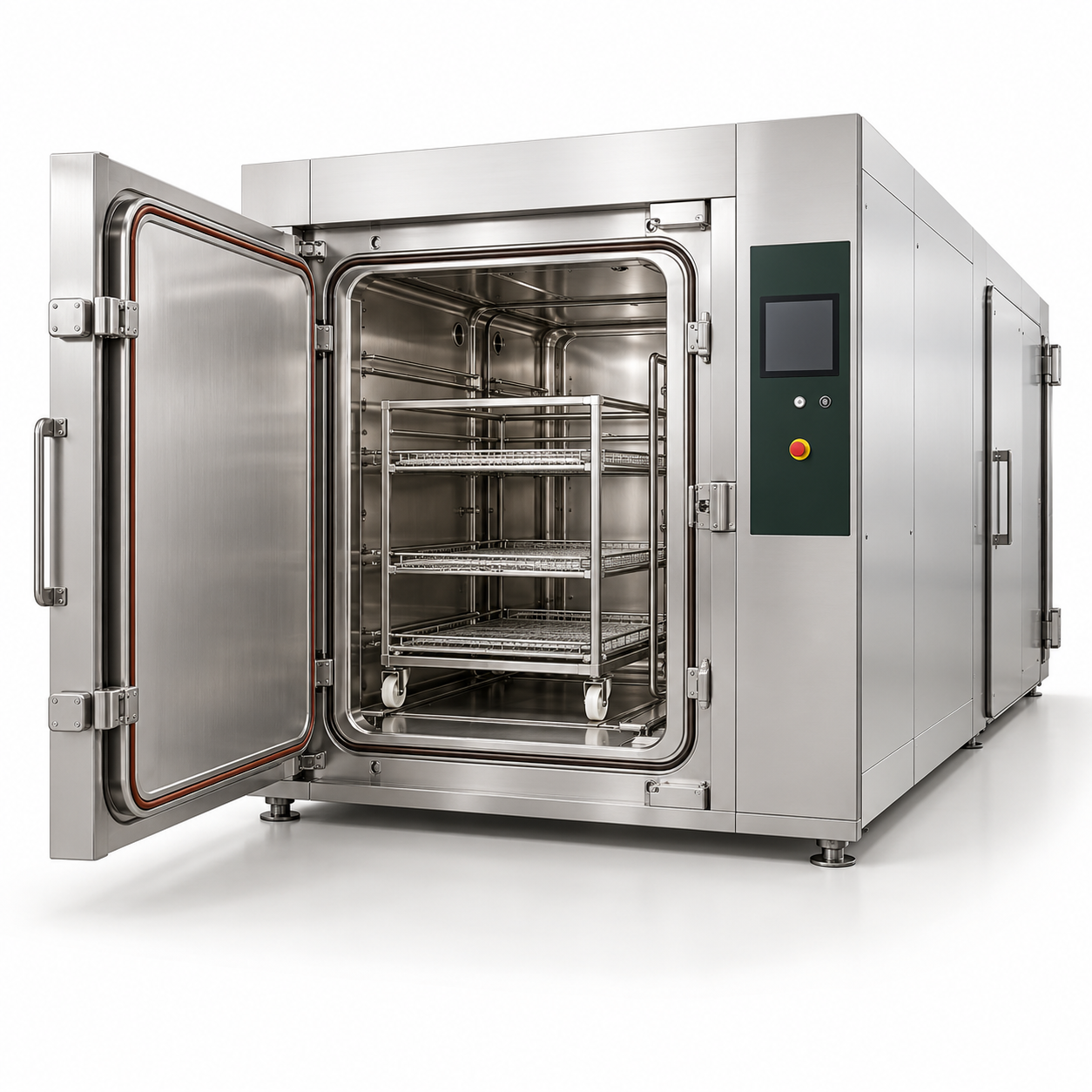

What does the Tuttnauer 5596 autoclave do?

The Franance listing identifies the Tuttnauer 5596 as a 250-litre horizontal laboratory steam autoclave. Tuttnauer describes this model for laboratory sterile-processing and quality-control workflows, with single- or double-door options and automatic sliding or manual hinged door arrangements. Its published programme range includes different load types, with additional cycle and cooling options available by configuration. Confirm the current documentation for the exact model, door, options and installation being quoted.

For a 5596 enquiry, describe the chamber load and batch plan, including wrapped and unwrapped instruments, glassware, liquids or other laboratory materials. Specify door orientation, transfer flow, loading equipment, chamber configuration, cycle and data-record requirements. Provide room layout, corridor and doorway dimensions, floor load, steam and water services, drainage, electrical supply and any required steam generator. If the unit forms part of a clean-to-sterile workflow, include the department's zoning and pass-through requirements in the design documents.

Tuttnauer's product page presents cycle choices and technical options, but it does not make any specific configuration automatically suitable for a Nigerian site. The process owner should validate cycles and load configuration against the manufacturer's instructions and facility policy. Ask Franance to state the proposed chamber, doors, controls, utilities, loading accessories, delivery and installation responsibilities separately in the quote.

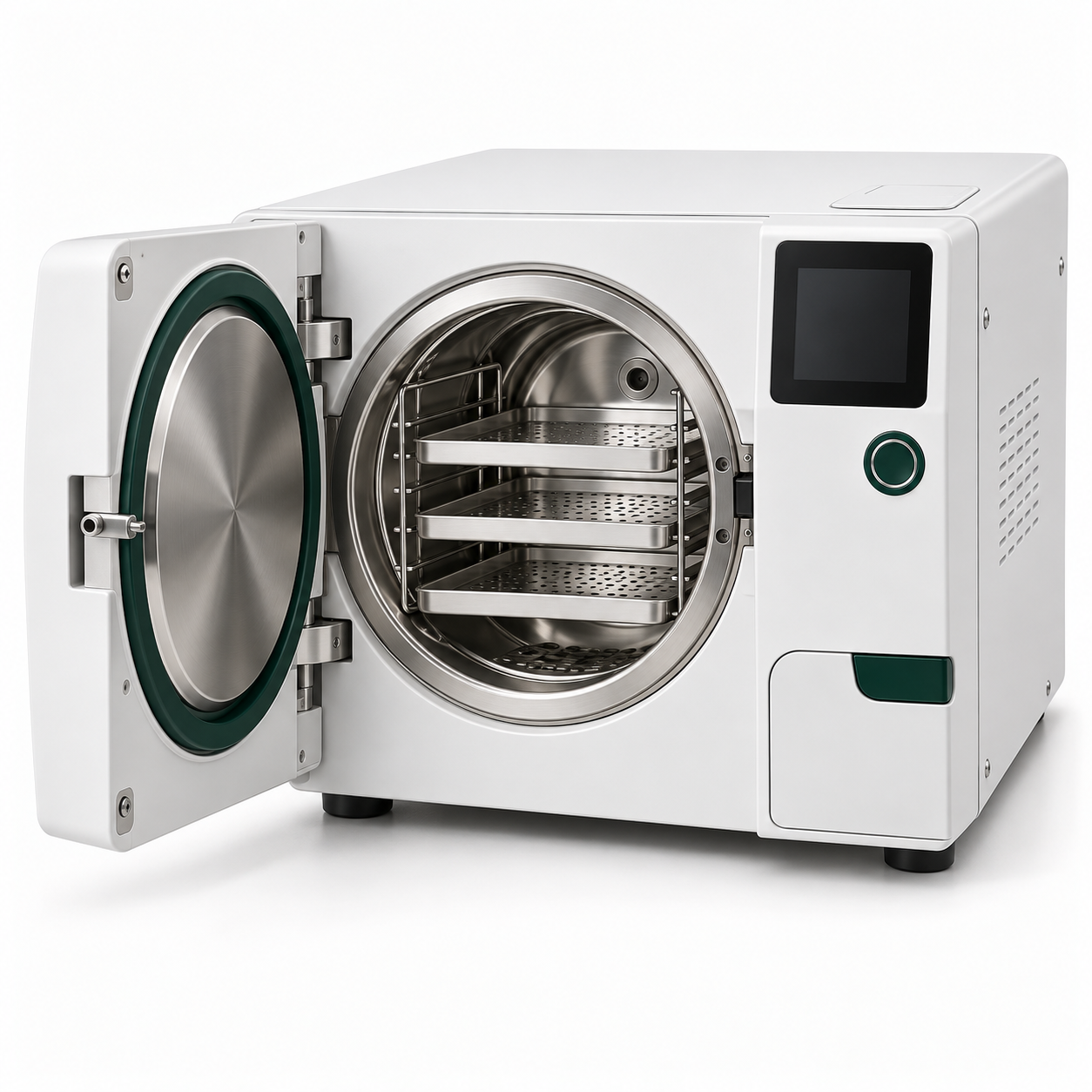

Is the Tuttnauer T-Edge 10 or T-Edge 11 right for my clinic?

T-Edge 10 and T-Edge 11 are tabletop Class B autoclaves in Tuttnauer's dental sterilization line. They are compact sterilizers for dental and other suitable small-practice workflows, but they are not interchangeable simply because their names share a product family. The model choice should follow the load envelope, tray size, quantity, required cycle and local electrical provision stated in the current model instructions.

Specify T-Edge 10 or T-Edge 11 explicitly. List the instruments or packaged loads, their dimensions, wrapped or unwrapped status, daily workload and required cycles. State whether your practice needs the current connectivity, reporting, printer or consumables options. Confirm the chamber and tray fit with the intended instruments, and ask the clinical lead to approve the process for each device and packaging type. Have the supplier identify what is included with the exact regional model, including trays, water handling components and installation materials.

The brand listing's T-Edge record covers both model names as a family reference; it does not establish the precise local variant, electrical rating or accessory package that will be supplied. Send the model and country-specific technical documents in the request. The practice manager and responsible infection-prevention staff should verify that the proposed unit and cycles fit the practice's validated sterilization workflow before purchase.

How do I choose the chamber size and cycle for a Tuttnauer autoclave?

Measure the actual load before choosing a chamber. Record the size, weight and quantity of wrapped packs, instruments, baskets, bottles, flasks, media or waste containers. Consider how staff arrange and remove each load, not just the vessel volume. A chamber that fits a single item may not accommodate the planned batch, tray arrangement or validated load spacing. For larger models, include trolleys, transfer cars and access restrictions in the space calculation.

Then describe the intended process: load category, cycle temperature and duration required by the approved protocol, air removal, drying, liquid cooling, waste handling, record keeping and quality controls. Ask which cycle programs are standard, user-programmable or optional on the exact model. Confirm whether a printer, software, network connection or reporting package is included. For T-Edge, use the current instructions for the selected model and instrument load; do not apply a laboratory autoclave cycle table to a dental tabletop unit.

The facility's process owner must determine suitability and validation. A manufacturer's list of possible cycles is not a validation record for your specific load. Include current device and packaging instructions, quality requirements and any tender specification in the quote request. Franance can discuss the submitted requirements and quote the selected model and scope, while your authorised team approves the process.

What utilities and installation details are required?

Autoclave requirements vary by model and options. Provide the available electrical voltage, phase, frequency and circuit details, water quality and supply, drainage, steam source or built-in steam-generation requirements, cooling, compressed air and ventilation details if applicable. The 5075ELV-D and 5596 materials describe multiple electrical and steam configuration possibilities; the exact specification must be obtained for the offered unit. Do not plan a connection based on a different model or a generic brand-family description.

Send room drawings with unit location, service clearances, loading side, delivery route, doorway and elevator dimensions, floor loading and ceiling height. For vertical autoclaves, include clear overhead height for loading. For horizontal units, show the door swing or slide, front and rear access and movement of carts. For a double-door model, show the wall and workflow separation. Include who provides utility connections, lifting, installation and room modifications.

Ask Franance to separate equipment, accessories, delivery, offloading, placement, installation, commissioning, training and qualification services in the quotation. These are different responsibilities and should not be assumed as standard. The facilities engineer should check the final manufacturer installation documents and site readiness before the delivery date is committed.

What documentation and technical services should I request?

Identify which records your facility needs before procurement. These may include model-specific data sheets, user and installation manuals, electrical drawings, chamber and service drawings, available cycle documentation, calibration or instrument records and quality qualification documentation. Tuttnauer describes different control, cycle-data, print, USB or software features across models; the exact interface or record package is option-dependent and must be stated in the offered configuration.

If installation qualification, operational qualification, performance qualification, staff training, maintenance, repair or commissioning is required, list it as requested scope. State the standard or hospital procedure that governs the documents, named participants and timing. Ask who supplies instruments, test packs, consumables, utilities, validation protocols and ongoing maintenance. Get these responsibilities in writing before the project is approved.

The guide does not promise that a particular service or documentation package is locally available. Franance can discuss your request and confirm the scope included in a quotation. Your quality and engineering team should review the offered documents, service responsibilities and acceptance criteria before the order is placed. Product claims and a catalogue listing do not establish successful installation or process qualification at your site.

What affects Tuttnauer autoclave prices and delivery in Nigeria?

Price depends on the exact model and capacity, chamber and door arrangement, cycle options, electrical and steam configuration, racks, baskets, trolleys, documentation features, quantity and requested installation scope. A 250-litre horizontal system has different transport and site needs from a tabletop or vertical unit. A quote for a base unit may not cover a steam generator, loading equipment, plumbing, electrical work, commissioning or qualification.

Send the destination state and city, delivery access, site readiness and required timing. Tell Franance whether the purchase is a replacement, a new laboratory, clinic fit-out or tender. Request that the written quotation identify the exact model, selected options, accessories, included documents, delivery assumptions, installation or service scope, exclusions, quotation validity, payment terms and warranty conditions. For comparison, evaluate quotes with the same chamber, cycle, accessories and service responsibilities.

Neither the Franance product list nor the manufacturer's global site establishes Nigerian stock, local distributor status, a fixed delivered price, regulatory status, warranty coverage, delivery date or locally included technical support for this order. These must be confirmed in writing for the specific quote. Do not treat another market's price or warranty information as the terms of a Nigerian supply proposal.

How does Franance handle a Tuttnauer quote order?

Send the model references, quantities and requirements through the product enquiry or contact route. Franance will follow up by phone or email to discuss the requested equipment and prepare a quotation. There is no online payment through the product pages. Your request can include a single tabletop sterilizer, a laboratory unit or a larger sterile-processing schedule with accessories and requested services.

Include the documents procurement and engineering need to assess the equipment: approved specification, load description, room drawing, utility schedule, delivery destination, technical scope and procurement deadline. Identify a facility contact who can answer questions about cycles, installation and access. Separate confirmed mandatory requirements from preferred options so the quote can show the difference clearly.

Before proceeding, have the appropriate laboratory, dental, infection-prevention and engineering personnel check the model, cycle, load, utility and installation configuration. Review the written offer for supply terms, warranty, payment, exclusions and requested services. Franance's follow-up helps develop a specific quote; your facility remains responsible for approving the process and site design.

How do I prepare a complete Tuttnauer quotation request?

Choose the relevant filtered category: vertical autoclaves for 3870ELV-D or 5075ELV-D, floor or horizontal steam autoclaves for 5596, and tabletop autoclaves for T-Edge 10 or 11. State the exact model and quantity. Include the load schedule, size and volume, cycle and cooling expectations, accessories, documentation, preferred electrical configuration and delivery destination.

Attach the technical or tender specification, room drawings, site utility information and the delivery route where useful. Tell Franance whether the requirement also includes installation, commissioning, training, testing, qualification or maintenance. Give a named contact for follow-up. Do not send confidential patient information; equipment, facility and process requirements are sufficient for procurement discussion.

Franance will contact you by phone or email to discuss the request and quotation. Before an order, compare the offered model and configuration with current Tuttnauer documents and your facility's approved protocol. Confirm the site is ready for the stated utilities, access and loading arrangement, and make sure all requested accessories and services are either included or clearly listed as exclusions.
